1. Introduction to top

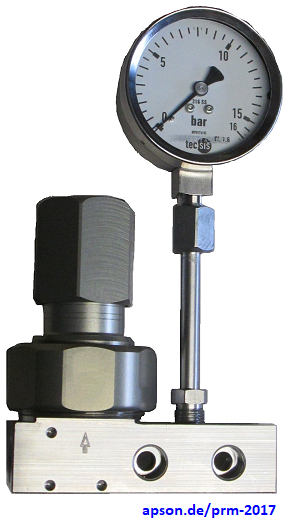

The APSON Lacquer Pressure Regulator
PRM-2017 is a mechanically controllable
pressure regulator for often changing aggressive media. In comparation to
PRM-2015, it has an approx. 35% larger throughput and a longer housing. It
has 5 integrated outputs and keeps the pressure of the medium at the
oulets constant and independent of the pressure fluctuations of the medium
supply system at the input of the regulator, if the input pressure is
larger than the preset output pressure.
The regulator is particularly optimized for good rinsing barness and
small solvent consumption. Therefore it is particularly suitable to the
employment in automatic systems for the processing of lacquers, solvents,
caustic solutions, a.o.
-
Environmental carefully due to short rinsing times.
-
Very good rinsing barness and small solvent consumption.
-
Compact design, large throughput and small pressure losses.
-
Very fast exchange of a defective diaphragm (2 minutes).
-
Simplest handling at assembling, adjustment and maintenance.
-
Rational maintenance and spareparts holding.
3. Structure and Function to top
The APSON Lacquer Pressure Regulator
PRM-2017 consists of a pressure chamber, which is separated
from the main spring chamber by means of a solvent-resistant diaphragm.
The diaphragm is subjected on one side with the pressure of the to be
regulated medium and on the other side with the force of the manually
adjustable main spring.
Legend: 1 = Lower casing part,
2 = Input, 3 = Recoil spring, 4 = Sealing ball, 5 = Sealing ring,
6 = Thrust piece, 7 = Diaphragm, 8 = Overthrow nut, 9 = Upper casing part,
10 = Adjustment nut, 11 = Main spring, 12 = Vent hole, 13 = Pressure
chamber, 14 = Output/s.
The thrust piece connected with the diaphragm controls the medium
quantity per time unit, flowing through the pressure regulator, via the
throttle provided with the sealing ball. The regulation procedure is
achieved through the equilibrium of the force between the main spring on
one side, and on the other side by the resulting force due to the medium
pressure together with the force of the recoil spring in the supply bore
of the throttle.
The desired medium pressure at the outlet of the regulator is
adjusted by manually rotating the adjustment nut of the regulator. For
rinsing of the pressure regulator the adjustment nut must be set to a
pre-determined value, so that the throttle is fully opened.
Important: The pressure regulator
is to be operated normally in vertical position, to be effective
cleaneable resp. when decantable media (e. g. metallic lacquers) are to be
processed. An eventual manometer is always to be operated in vertical
position, because of the gas column in the rising tube.
Important: When exchanging the
diaphragm it is to be made certain that the Teflon™-coated surface of the
diaphragm points into the direction of the medium chamber.
Application-Note: Paint pressure regulators with multiple
outlets can save costs, if applied correctly. Regulators of this kind are NOT intended
for turning on or off individual consumers, or changing the output impedance of
individual consumers, during operation. Otherwise, the pressure conditions change on
the other consumers of the regulator. If in doubt, please clarify the regulator type
with APSON prior to ordering. Normally for every consumer a usual APSON regulator
with a single outlet is to be planned!

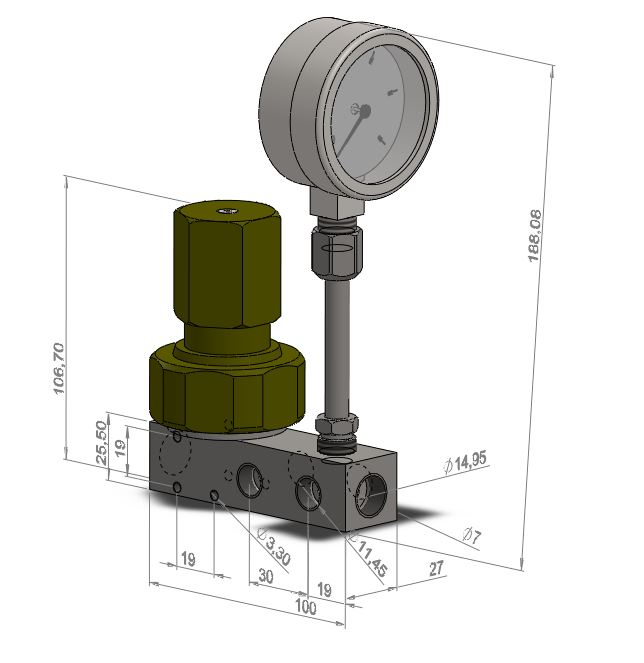

4. Technical Data to top
Denomination: |
APSON Lacquer Pressure Regulator
PRM-2017 |
Media: |
Lacquers, solvents, alkalis, a.o. |
Medium pressure input: |
max. 20 bar |
Operating pressure output: |
approx. 0 to 16 bar |
Connections: |
1 inlet, 5 outlets. See Application-Note in the previous section! |
Materials: |
Medium-touching parts made of inoxidable steel. Union nut
and cover part from aluminum, hardcoated. Diaphragm from rubber with
fabric proportion, Teflon™-coated.
|
Mass: |
approx. 650 g |
5. Ordering Data to top
Denomination |
Part-Nr. |
APSON Lacquer Pressure Regulator PRM-2017 (see Application-Note, further above) |
040-A021-3E |
APSON Lacquer Pressure Regulator Key (wrench width 54 mm) |
100-0105 |
