1. Introduction to top

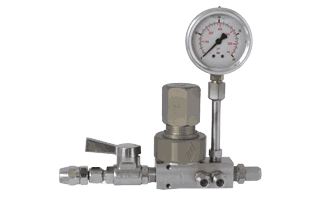

The APSON Lacquer Pressure Regulator PRM-2000 is a
mechanically controllable pressure regulator for
often changing aggressive media. It keeps the media pressure at the exit
constant and independent of the pressure fluctuations of the medium supply
system at the entrance of the regulator, if the input pressure is larger
than the preset exit pressure.
The regulator is particularly optimized for good rinsing barness and
small solvent consumption. Therefore it is particularly suitable to the
employment in automatic systems for the processing of lacquers, solvents,
caustic solutions, a.o.
-
Environmental carefully due to short rinsing times.
-
Very good rinsing barness and small solvent consumption.
-
Small pressure losses.
-
Rational maintenance and spareparts holding.
-
Very fast exchange of a defective diaphragm (2 minutes).
-
Simplest handling at assembling, adjustment and
maintenance.
-
Small, compact size.
3. Structure and Function to top
The APSON Lacquer Pressure Regulator PRM-2000 consists of a medium
pressure space, which is separated from the compression spring space by
means of a solvent-resistant diaphragm. The diaphragm is subjected on one
side with the pressure of the to be regulated medium and on the other side
with the force of the manually adjustable compression spring.
A thrust piece connected with the diaphragm controls the medium
quantity per time unit, flowing through the pressure regulator, via a
throttle provided with a ball. The regulation procedure is achieved
through the equilibrium of the force between the compression spring on one
hand, and by the resulting strength due to the medium pressure together
with the force of the recoil spring in the supply drilling of the throttle
on the other hand.
The desired medium pressure at the output of the regulator is
adjusted mechanically by means of manually adjusting the nut of the
regulator. For rinsing of the pressure regulator the adjusting nut must be
set to a pre-determined value, so that the throttle is fully
opened.
Important: When exchanging the
diaphragm it is to be made certain that the Teflon™-coated surface of the
diaphragm points into the direction of the medium space.
4. Technical Data to top
Denomination: |
APSON Lacquer Pressure Regulator PRM-2000 |
Media: |
Lacquers, solvents, caustic solutions, a.o. |
Medium pressure input: |
max. 10 bar |
Operating pressure output: |
0 to 8 bar |
Materials: |
-
Medium-touching sections made of inoxidable steel.
-
Union nut and cover part from aluminum, hardcoated.
-
Diaphragm from rubber with fabric proportion,
Teflon™-coated.
|
Medium links: |
G1/4" |
Dimensions: |
Diameter 57 mm, Height 130 mm |
Mass: |
approx. 420 g |
5. Ordering Data to top
Denomination |
Part-Nr. |
APSON Lacquer Pressure Regulator PRM-2000 |
040-A001 |
APSON Lacquer Pressure Regulator Key (wrench width 54 mm) |
100-0105 |
