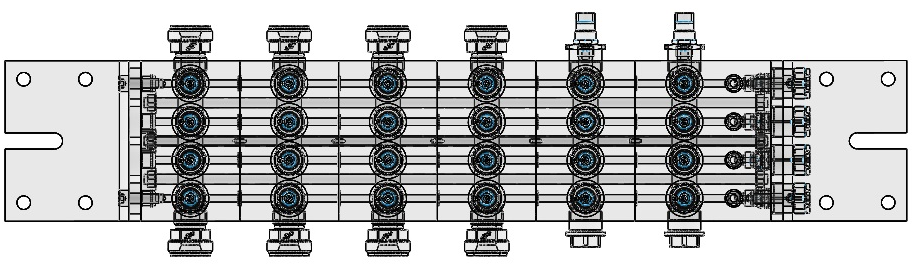

The APSON Lacquer Changer LCLT-20K4
Inline is a modular expandable switching unit for pressurized
chemically aggressive work materials, e.g. paints, solvents, alkalis. It
is an evolution of the standard lacquer changer typ and belongs to the
class of inline paint changers with large inline throughput for many
delivery points. The paint changer consists of a maximum of 23 switching
blocks. Each block is provided with 1 throughput
channel (inline channel) and 4 independent output channels
(A-B-C-D). Each output channel of a block is independent of the
other output channels and can be fitted with pneumatically controlled
APSON valves or APSON locking screws. This lacquer changer type is also
deliverable as piggable/newteable
execution (APSON LCLT-20K4- N, Lacquer
Changer for recovering the residual amounts).
Due to the multi-channel, economical A-B to
A-B-C-D systems or special applications are realisable. All
four output channels can be switched through to the same paint, or any
output channel can be switched through to a different paint. The piggable
execution of the paint changer allows coating processes without work
breaks (back pushing of the residual quantities, flushing the lines,
re-charging with new work material), because the inactive part of the
system can be used for recovering the residual amounts of old paint type
and for pre-charging with a new type of paint, while a different part of
the system is producing.
The piggable APSON LCLT-20K4-N
enables almost complete recovery of the residual amounts by back pushing
the work material from the supply lines and paint changers into the supply
system. It offers large material throughput and allows, due to the
construction and the used dead-space-minimized APSON valve technology,
very good rinsing of both, the supply lines as well as the output lines of
the paint system.
Large inline throughput and very good rinsing, N-version is piggable.
Environmentally friendly due to short rinsing times and workmaterial recovery (N version)
Modular expandable to the desired number of media (up to 23 blocks).
Dead-space-minimized valves, and rinsing- and throughput-optimized ducts.
Cost-saving due to 4 channels and minimal work material consumption.
Easy handling during installation and maintenance.
Material: Stainless steel, therefore durable and wear resistant.
Resistant to alkalis and weak acids.
3. Structure and Function
^^ to top
The APSON LCLT-20K4 consists of a
maximum of twenty-one 4-channel switch blocks for paint (LB), a lacquer
changer end-block (special switch block, normally at upper end) for the
media outlet, and a cleaner/dump group (usually at lower end). The
cleaner/dump group consists of a normal switch block (AB) for supply of
air and a special dump block (DB) for the supply of solvent (S) and for
rinsing (dump or recycle).
Legend: LB = switching blocks for
paint, AB = switching block for air, DB = switching block for dump or
recycling; A, B, C, D = output channels, V = 2/2-way valves, L.. = paint
or work medium, PL.. = control air for lacquer valves (pneumatic), PU =
pump, PR = pressure regulator / pressure limitor, RS = loop system
(example for decanting work media), TS = stub system (example), T = screw
plug, PA.. = control air for air (A), PS.. = control air for solvent (S),
D.. = dump or recycle.
The air-block and each paint block have four screw sockets for paint
valves. The dump-block has four frontal outputs, four frontal and four
end-sided screw sockets for paint valves. Thus per block, four inline
channels can be independently switched-through to the four output
channels. The lacquer changer blocks have at one end of each output
channel a seal (one per channel) for sealing of the adjacent blocks and
two pins to align the blocks when assembling the lacquer changer. The
components are made of stainless steel as standard.
During a rinsing cycle, the respective valves of the cleaner/dump
group (AB and DB) supply several times alternately, for a short time air
and solvent into the to be rinsed output channel of the switch blocks of
the actual paint changer (LB).
4. Technical Data
to top
Denomination |
APSON Lacquer Changer LCLT-20K4
Inline, with cleaner/dump group, without hose and tube
fittings (or according to customer's requests) |
Work materials / Media |
Lacquers, solvents, caustic solutions, weak acid solutions, etc. |
Number of blocks |
Maximal 23 blocks (maximal 21 blocks for paint) |
Work material pressure |
Maximal 15 bar |
Valve assembly (optional) |
APSON 2/2-Ways Valves LV 2014-6P, dead-space-minimized valve
technology, arrangement and assembly according to customer's
requests |
Materials |
Stainless steel |
Seals |
Viton™, or according to customer's request |
Inline passages |
DN20, for pipe connections, or according to customer's requests |
Connections for paint |
G1", or reduced, according to customer's request |
Connections for air, solvent |
G1/4", for hose D × d = 8 × 6 mm, or according to customer's
request |
Dimensions of one block Length × Width × Height |
70 × 130 × 80 mm (without valves and fittings) |
Mass |
Approximativ 4.9 kg per block |
Denomination |
Part-
Number . |
APSON Lacquer Changer LCLT-20K4,
with cleaner/dump group, without pipe and hose fittings.
Number of paints or special designs according to customer's request. |
050-A296 |
APSON Lacquer Changer LCLT-20K4-N,
Piggable, with cleaner/dump group, without pipe and hose
fittings. Number of paints or special designs according to customer's request. |
050-A296-1 |
APSON 2/2-way valve lacquer LV 2014-6P (spare parts) |
060-A039-6 |
APSON screw plug VS-2008 (spare part) |
100-0886 |
APSON check valve (spare parts) |
100-A014-5 |
APSON reduction G3/4"- G1/2" (spare parts) |
200-0655 |
APSON screw plug G3/4" (spare parts) |
200-0656 |
